Thread Ball check valve DN40-DN80

Nominal Dia:DN50-DN500
Nominal Pressure:PN10&PN16
Standard:DIN3202 F6
  • Commodity name： Thread Ball check valve DN40-DN80
  • Commodity ID： YX059

Category:

Check Valve

Email:

info@civalves.com

Get a quote
Related products
  • Product Description

  • Technical Parameters

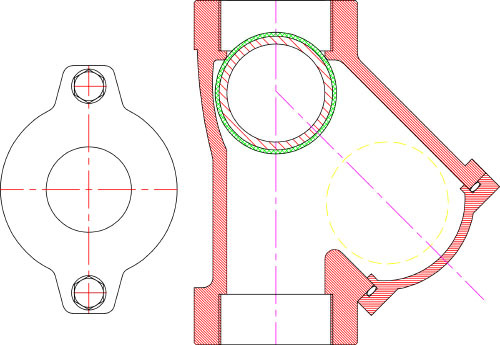

    Part & Materials

    		No Part  Material
    1 Body Ductile Iron GGG50
    2 Ball CS/DI+NBR
    3 O-Ring NBR
    4 Bonnet Ductile Iron GGG50
    5 Bolts A2-70
    6 Washer Stainless Steel
    7 Washer PTFE
    8 Plug Carbon Steel



    Technical Data
    No Description Specification
    1 Nominal Dia DN50-DN500
    2 Nominal Pressure PN10&PN16
    3 Valve Design Standard DIN3202 F6
    4 Face to Face Standard EN558&ISO5752 Series-48
    5 Flange Standard Conformity  DIN2533
    6 Testing Standard DIN3230
    7 Expoxy Coating Epoxy powder coating
    with minimum thickness of 250
    microns inside and outside.
    8 Testing Pressure
    Shell Test PN*1.5Times
    Sealing Test PN*1.1Times
    9 Working Temperature(Max)  120℃



    Dimensions(mm)
    DN L D C B  n-d b f H
    PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16
    DN50 200 165 125 99 4-19 19 3 115
    DN65 240 185 145 119 4-19 19 3 124
    DN80 260 200 160 133 8-19 19 3 138
    DN100 300 220 180 154 8-19 19 3 162
    DN125 350 250 210 184 8-19 19 3 202
    DN150 400 285 240 210 8-23 19 3 228
    DN200 500 340 295 265 8-23 12-23 20 3 298
    DN250 600 405 350 355 319 12-23 12-28 22 3 368
    DN300 700 460 400 410 370 12-23 12-28 24.5 4 438
    DN350 800 520 460 470 429 16-23 16-28 26.5 4 585
    DN400 900 580 515 525 480 16-28 16-31 28 4 660
    DN500 1100 715 620 650 582 609 20-28 20-34 31.5 4 850
