Resilient Seated Gate Valve BS5163 DN700-DN1200

Category:

BS5163 resilient seated gate valve

Commodity name： Resilient Seated Gate Valve BS5163 DN700-DN1200
Commodity ID： YX016

Nominal Dia:DN700-DN1200
Nominal Pressure:PN10&PN16
Standard:BS5163

Email:

info@civalves.com

Get a quote

Technical Parameter

Part & Materials
No	Part	Material
1	Body	Ductile Iron GGG50
2	Wedge	Ductile Iron GGG50 +EPDM
3	Stem Nut	Brass
4	Stem	SS420
5	Bolts	CS Gr 12.9
6	Gasket	EPDM
7	Bonnet	Ductile Iron GGG50
8	Locating Ring	Brass
9	O Ring	EPDM
10	Gland	Ductile Iron GGG50
11	O Ring	EPDM
12	Bolts	CS/A2-70
13	Spur/Bevel gear	Ductile Iron GGG50
14	Cap/Handwheel	Ductile Iron GGG50

Technical Data
No	Description	Specification
1	Nominal Dia	DN700-DN1200
2	Nominal Pressure	PN10&PN16
3	Valve Design Standard	BS5163
4	Face to Face Standard	EN558&ISO5752 Series-3
5	Flange Standard Conformity	EN1092-2
6	Testing Standard	EN12266-1
7	Expoxy Coating	Epoxy powder coating with minimum thickness of 250 microns inside and outside.


8	Testing Pressure
	Shell Test	PN*1.5Times
	Sealing Test	PN*1.1Times
9	Working Temperature(Max)	120℃

Dimensions(mm)
PN10
DN	A	L	D	C	B	n-Φd	b	f	H
DN700	700	610	895	840	794	24-31	32.5	5	1320
DN750	700	610	960	900	854	24-31	32.5	5	1320
DN800	800	660	1015	950	901	24-34	35	5	1490
DN900	900	711	1115	1050	1001	28-34	37.5	5	1675
DN1000	1000	811	1230	1160	1112	28-37	40	5	1850
DN1100	1100	811	1340	1270	1218	32-37	42	5	2050
DN1200	1200	1015	1455	1380	1328	32-40	45	5	2160
PN16
DN	A	L	D	C	B	n-Φd	b	f	H
DN700	700	610	910	840	794	24-37	39.5	5	1320
DN750	700	610	970	900	854	24-37	41	5	1320
DN800	800	660	1025	950	901	24-40	43	5	1490
DN900	900	711	1125	1050	1001	28-40	46	5	1675
DN1000	1000	811	1255	1170	1112	28-43	50	5	1850
DN1100	1100	811	1355	1270	1218	32-43	53.5	5	2050
DN1200	1200	1015	1485	1390	1328	32-49	57	5	2160

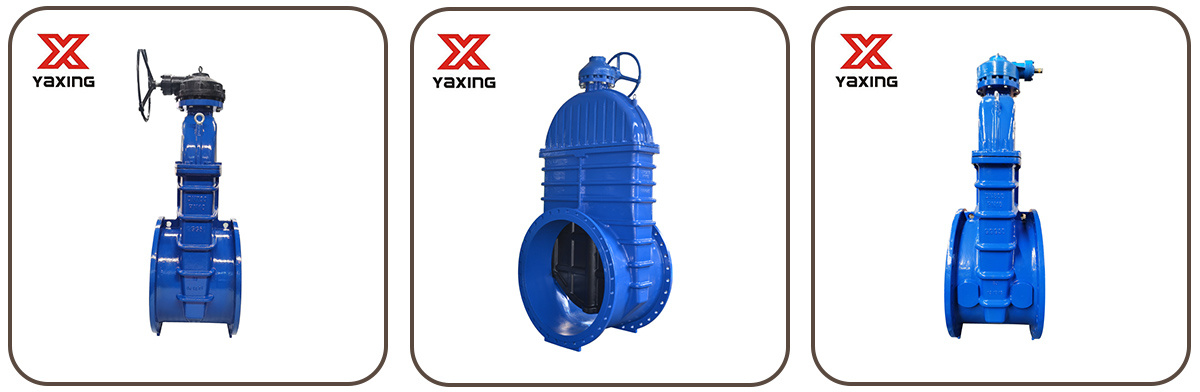

Product Display

When it comes to robust and reliable valve solutions, the Resilient Seated Gate Valve BS5163 DN700-DN1200 is a top choice for a wide range of industrial and municipal applications. Designed to handle large volumes of fluid with ease, this valve stands out for its exceptional performance, durability, and versatility.

The Resilient Seated Gate Valve BS5163 DN700-DN1200 is engineered to meet the demands of high-pressure and high-flow environments. With a range of sizes from DN700 to DN1200, this valve is perfect for applications requiring substantial flow control. Its resilient seating ensures a tight seal, effectively minimizing leakage and enhancing overall system efficiency.

The Resilient Seated Gate Valve BS5163 DN700-DN1200 is a superior choice for applications requiring reliable and efficient flow control. Its robust construction, resilient seating, and large diameter make it ideal for handling high-pressure and high-flow scenarios. Available for sale near you, this valve is a top pick for home users, industrial facilities, and municipal systems alike. Explore the best deals and prices from leading suppliers and manufacturers in China to get this high-quality valve for your needs. For more information and purchasing options, contact our suppliers and experience the benefits of premium valve solutions.
