Resilient Seated Gate Valve BS5163 With Top Brass Nut DN40-DN300

Category:

BS5163 resilient seated gate valve

Commodity name： Resilient Seated Gate Valve BS5163 With Top Brass Nut DN40-DN300
Commodity ID： YX014

Nominal Dia:DN40-DN300
Nominal Pressure:PN10&PN16
Standard:BS5163

Email:

info@civalves.com

Get a quote

Technical Parameter

Part & Materials
	No	Part	Material
	1	Body	Ductile Iron GGG50
	2	Wedge	Ductile Iron GGG50 EPDM
	3	Stem	SS420
	4	Stem Nut	Brass
	5	Bolts	CS Gr 8.8
	6	Gasket	EPDM
	7	Bonnet	Ductile Iron GGG50
	8	O Ring	NBR
	9	Bonnet Nut	Brass
	10	PTFE Pad	PTFE
	11	Thrust Washer	Brass
	12	PTFE Pad	PTFE
	13	Dust Cover	NBR
	14	Hand Wheel/Cap	Ductile Iron GGG50
	15	Bolts	A2-70

Technical Data
No	Description	Specification
1	Nominal Dia	DN40-DN300
2	Nominal Pressure	PN10&PN16
3	Valve Design Standard	BS5163
4	Face to Face Standard	EN558&ISO5752 Series-3
5	Flange Standard Conformity	EN1092-2
6	Testing Standard	EN12266-1
7	Expoxy Coating	Epoxy powder coating with minimum thickness of 250 microns inside and outside.


8	Testing Pressure
	Shell Test	PN*1.5Times
	Sealing Test	PN*1.1Times
9	Working Temperature(Max)	120℃

Dimensions(mm)
DN	L	D		C		B		n-d		b	f	W	H
		PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16
DN40	165	150		110		84		4-19		18	3	160	190
DN50	178	165		125		99		4-19		19	3	160	205
DN65	190	185		145		119		4-19		19	3	160	225
DN80	203	200		160		133		4-19	8-19	19	3	180	250
DN100	229	220		180		154		8-19		19	3	200	285
DN125	254	250		210		184		8-19		19	3	250	330
DN150	267	285		240		210		8-23		19	3	250	375
DN200	292	340		295		265		8-23	12-23	20	3	300	480
DN250	330	405		350	355	319		12-23	12-28	22	3	330	590
DN300	356	460		400	410	370		12-23	12-28	24.5	4	380	650

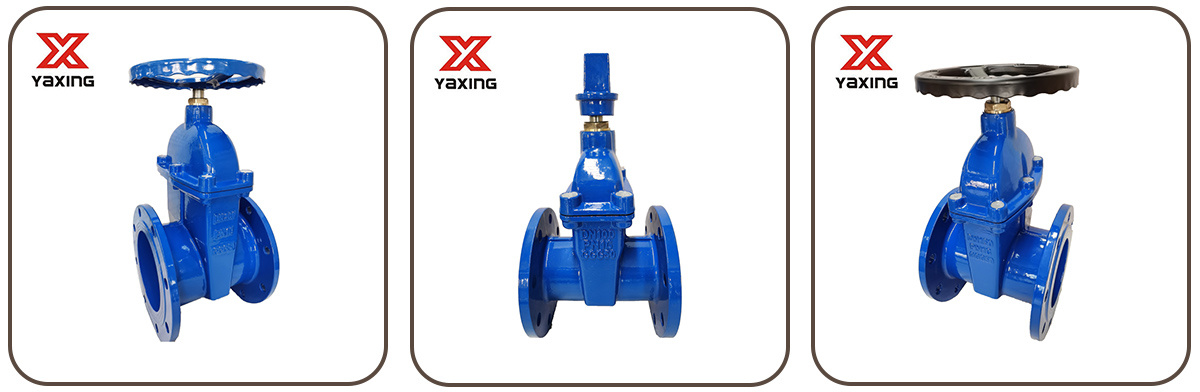

Product Display

The Resilient Seated Gate Valve BS5163 With Top Brass Nut is a remarkable product that showcases the pinnacle of engineering and manufacturing. This valve is designed and produced by renowned manufacturers in China, known for their unwavering commitment to quality.

One of the standout features of this valve is its construction. The inclusion of a top brass nut not only adds to its durability but also ensures smooth and reliable operation. It is available in sizes ranging from DN40 to DN300, offering flexibility for a wide variety of applications.

In terms of performance, this valve truly excels. It is engineered to provide efficient fluid control, with a resilient seated design that guarantees a tight seal and minimal leakage. This is crucial in industries where precision and reliability are of utmost importance, such as in oil and gas, water treatment, and chemical processing.

The valve's durability is another significant advantage. Built to withstand the rigors of demanding industrial environments, it offers long-lasting performance and requires minimal maintenance. This translates to reduced downtime and increased productivity for users.

For those seeking cost-effective solutions, the Resilient Seated Gate Valve BS5163 With Top Brass Nut is a great choice. Suppliers in China offer these valves at competitive prices, often with discounts and wholesale options available. This makes it accessible to both large-scale industrial operations and smaller businesses.

Customers can also benefit from the option of customized designs. Whether it's for a specific application or to meet unique project requirements, the valve can be tailored to perfection. This level of flexibility ensures that it seamlessly integrates into any system.

The valve is on sale near many locations, thanks to the extensive network of suppliers and distributors. Chinese manufacturers play a vital role in ensuring its widespread availability. Whether you're in need of a valve for a large industrial plant or a smaller-scale project for home use, this valve is a reliable option.
