Z945X 电动软密封闸阀

可根据用户的要求配装各种电动执行机构，实现远距离控制及自动控制，除了具有弹性座封闸阀的优点外，还具有灵敏、可靠、安装方便等特点。
  • Commodity name： Z945X 电动软密封闸阀
  • Commodity ID： 1048151391165308928

Category:

DIN resilient seated gate Valve

Email:

info@civalves.com

Get a quote
Related products
  • Product Description

  • 一、Z945x闸阀产品介绍

    可根据用户的要求配装各种电动执行机构，实现远距离控制及自动控制，除了具有弹性座封闸阀的优点外，还具有灵敏、可靠、安装方便等特点。

    二、Z945x闸阀使用特点

      1、Z945X软密封闸阀整体包胶：阀门采用整体包胶，其良好的覆着性能与精确的几何尺寸，保证密封可靠，寿命长。

      2、Z945X软密封电动闸阀重量轻：阀体采用球铁制成，重量轻，安装方便。

      3、 Z945X软密封电动闸阀平底阀座：底部采用与水管相同的平底式阀座设计，不产生杂物淤积，密封更可靠。

      4、Z945X软密封电动闸阀耐腐蚀：内腔采用无毒环氧树脂涂装，防止腐蚀和生锈，不但可供生饮，而且可用于污水系统。

      5、Z945X软密封电动闸阀三“O”密封：阀杆采用三道O型环密封，磨擦阻力小，开关轻巧，不漏水。

    三、零件材料

    零件名称

    材料

    阀体、阀盖

    球墨铸铁

    闸板

    球墨铸铁+EPDM

    阀杆

    不锈钢

    阀杆螺母

    铸黄铜

    填料

    EPDM

    内六角螺母

    碳钢

    垫片

    EPDM

    四、主要技术参数

    ◆公称压力：1.0-1.6MPa

    ◆公称通经：500-1200mm

    ◆工作温度：0～80℃

    ◆法兰标准：GB/T 12233-2006

    ◆试验标准：GB13927 AP1598

    ◆适用介质：水、油、气及腐蚀性介质

    ◆驱动方式：电动

    ◆符合标准：GB/T 12233

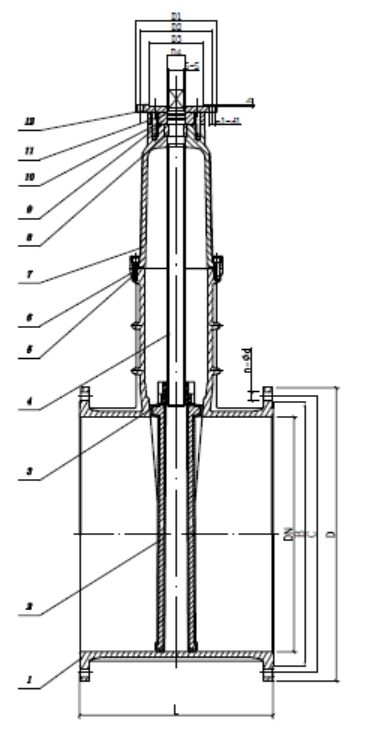

    五、结构图



    Size L D C B n-d b
    DN500 457 670 715 620 650 582 20-28 20-32 26.5 31.5
    DN600 508 780 840 725 770 682 20-31 20-37 30 36
    DN700 610 895 910 840 840 794 24-31 24-37 32.5 39.5
    DN800 660 1015 1025 950 950 901 24-34 24-40 35 43
    DN900 711 1115 1125 1050 1050 1001 28-34 28-40 37.5 46.5
    DN1000 811 1230 1255 1160 1170 1112 28-37 28-43 40 50
    DN1200 1015 1455 1485 1380 1390 1328 32-40 32-49 45 57
