Category:

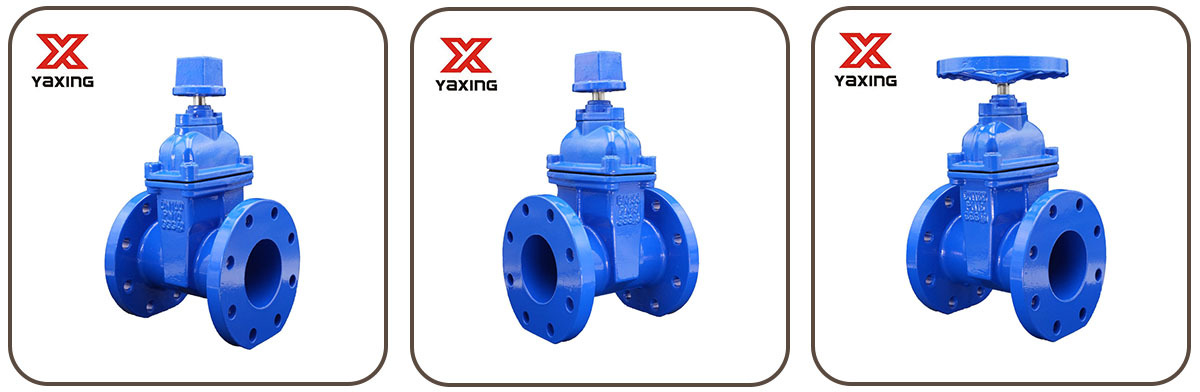

AWWA resilient seated gate valve

  • Commodity name: Resilient Seated Gate Valve AWWA C509 DN50-DN600
  • Commodity ID: YX031
Nominal Dia:DN50-DN600
Nominal Pressure:125/150PSI
Standard:AWWA C509
  • Product Description
  • Technical Parameter

    Part & Materials

    No Part  Material
    1 Body Ductile Iron GGG50
    2 Wedge Ductile Iron GGG50 +EPDM
    3 Stem Nut Brass
    4 Stem SS420
    5 Gasket EPDM
    6 Bonnet Ductile Iron GGG50
    7 Locating Ring Brass
    8 O Ring EPDM
    9 Bolts CS Gr 8.8
    10 Hand Wheel/Cap Ductile Iron GGG50
    11 Gland Ductile Iron GGG50
    12 O Ring EPDM
    13 Nuts A2-70
    14 Washer Carbon Steel
    15 Bolts CS Gr 8.8



    Technical Data
    No Description Specification
    1 Nominal Dia DN50-DN600
    2 Nominal Pressure 125/150PSI
    3 Valve Design Standard AWWA C509
    4 Face to Face Standard EN558&ISO5752 Series-3
    5 Flange Standard Conformity  ANSI B16.1 FF/RF
    6 Testing Standard API598
    7 Expoxy Coating Epoxy powder coating
    with minimum thickness of 250
    microns inside and outside.
    8 Testing Pressure
    Shell Test PN*1.5Times
    Sealing Test PN*1.1Times
    9 Working Temperature(Max)  120℃



    Dimensions(mm)
    DN L D C b n-d W H
    DN50 178 152 121 16 4-19 160 205
    DN65 190 178 140 18 4-19 160 225
    DN80 203 190 152.4 19 4-19 180 250
    DN100 229 229 190.5 24 8-19 200 285
    DN125 254 254 216 26 8-22 250 330
    DN150 267 279 241.3 26 8-22 250 375
    DN200 292 343 298.5 29 8-22 300 480
    DN250 330 406 362 31 12-25 330 590
    DN300 356 483 431.8 32 12-25 380 650
    DN350 381 533 476 35 12-29 490 770
    DN400 406 579 539.5 36.6 16-29 490 850
    DN450 432 635 578 39.7 16-32 490 920
    DN500 457 698 635 42.9 20-32 590 1000
    DN600 508 813 749.5 47.7 20-35 590 1190
