Category:

Socket end resilient seated gate valve

  • Commodity name: Socket End Resilient Seated Gate Valve With Top Brass Nut DN50-DN300
  • Commodity ID: YX025
Nominal Dia:DN50-DN300
Nominal Pressure:PN10&PN16
Standard:DIN3352 F5
  • Product Description
  • Technical Parameter

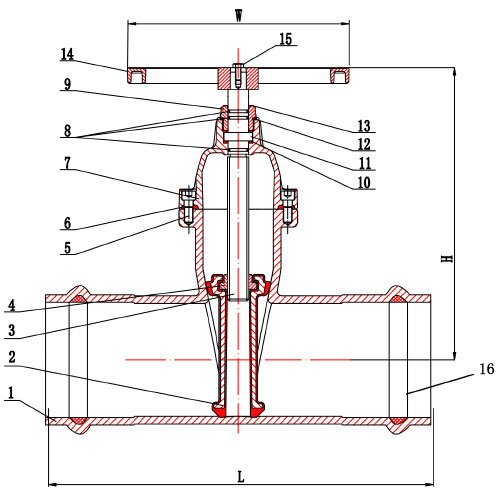

    Part & Materials

    No Part  Material
    1 Body Ductile Iron GGG50
    2 Wedge Ductile Iron GGG50+EPDM
    3 Stem SS420
    4 Stem Nut Brass
    5 Bolts CS Gr 8.8
    6 Gasket EPDM
    7 Bonnet Ductile Iron GGG50
    8 O Ring NBR
    9 Bonnet Nut Brass
    10 PTFE Pad PTFE
    11 Locating Ring Brass
    12 PTFE Pad PTFE
    13 Dust Cover NBR
    14 Cap Ductile Iron GGG50
    15 Bolts A2-70
    16 Sealing Ring NBR



    Technical Data
    No Description Specification
    1 Nominal Dia DN50-DN300
    2 Nominal Pressure PN10&PN16
    3 Valve Design Standard DIN3352 F5
    4 Face to Face Standard EN558&ISO5752 Series-15
    5 Socket Standard Conformity  EN12842
    6 Testing Standard EN12266-1
    7 Expoxy Coating Epoxy powder coating
    with minimum thickness of 250
    microns inside and outside.
    8 Testing Pressure
    Shell Test PN*1.5Times
    Sealing Test PN*1.1Times
    9 Working Temperature(Max)  120℃



    DN DN50 DN65 DN80 DN100 DN150 DN200 DN250 DN300
    PVC Tude 63 75 90 110 160 200 250 315
    L 250 270 280 300 350 400 450 500
    C 2‘’*2‘' 2‘’*2‘' 2‘’*2‘' 2‘’*2‘' 2‘’*2‘' 2‘’*2‘' 2‘’*2‘' 2‘’*2‘'
    160 160 180 200 250 300 330 380
    H 200 210 250 280 385 460 580 640

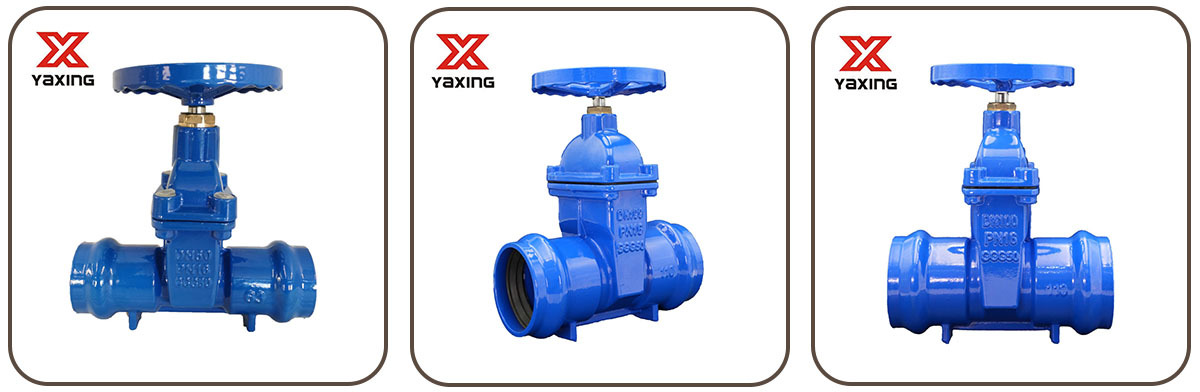

    Product Display
