DIN resilient seated gate Valve

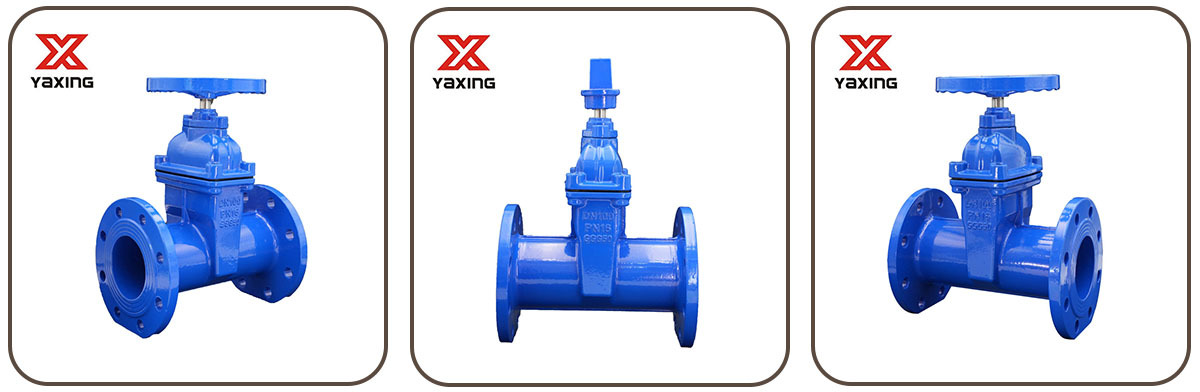

  • Commodity name: Resilient Seated Gate Valve DIN3352 F5 DN40-DN600
  • Commodity ID: YX004
Nominal Dia:DN40-DN600
Nominal Pressure:PN10&PN16
Standard:DIN3352 F5
  • Product Description
  • Technical Parameter

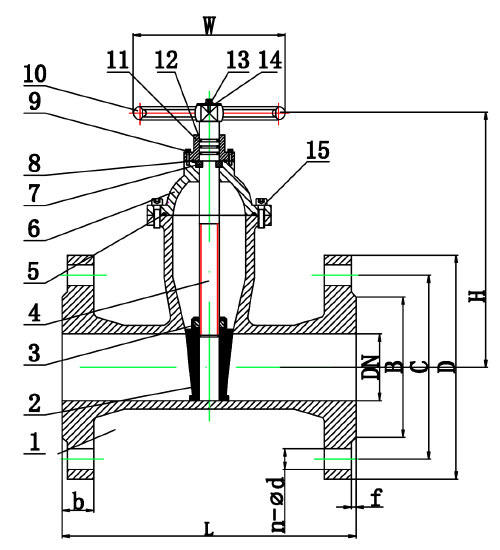

    Part & Materials

    No Part  Material
    1 Body Ductile Iron GGG50
    2 Wedge Ductile Iron GGG50 +EPDM
    3 Stem Nut Brass
    4 Stem SS420
    5 Gasket EPDM
    6 Bonnet Ductile Iron GGG50
    7 Locating Ring Brass
    8 O Ring EPDM
    9 Bolts CS Gr 8.8
    10 Hand Wheel/Cap Ductile Iron GGG50
    11 Gland Ductile Iron GGG50
    12 O Ring EPDM
    13 Nuts A2-70
    14 Washer Carbon Steel
    15 Bolts CS Gr 8.8



    Technical Data
    No Description Specification
    1 Nominal Dia DN40-DN600
    2 Nominal Pressure PN10&PN16
    3 Valve Design Standard DIN3352 F5
    4 Face to Face Standard EN558&ISO5752 Series-15
    5 Flange Standard Conformity  DIN2533
    6 Testing Standard DIN3230
    7 Expoxy Coating Epoxy powder coating
    with minimum thickness of 250
    microns inside and outside.
    8 Testing Pressure
    Shell Test PN*1.5Times
    Sealing Test PN*1.1Times
    9 Working Temperature(Max)  120℃



    Dimensions(mm)
    DN L D C n-d b f W H
    PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16
    DN40 240 150 110 84 4-19 18 3 160 190
    DN50 250 165 125 99 4-19 19 3 160 205
    DN65 270 185 145 119 4-19 19 3 160 225
    DN80 280 200 160 133 4-19 8-19 19 3 180 250
    DN100 300 220 180 154 8-19 19 3 200 285
    DN125 325 250 210 184 8-19 19 3 250 330
    DN150 350 285 240 210 8-23 19 3 250 375
    DN200 400 340 295 265 8-23 12-23 20 3 300 480
    DN250 450 405 350 355 319 12-23 12-28 22 3 330 590
    DN300 500 460 400 410 370 12-23 12-28 24.5 4 380 650
    DN350 550 520 460 470 429 16-23 16-28 24.5 26.5 4 490 770
    DN400 600 580 515 525 480 16-28 16-31 24.5 28 4 490 850
    DN450 650 640 565 585 530 20-28 20-31 25.5 30 4 490 920
    DN500 700 715 620 650 582 609 20-28 20-34 26.5 31.5 4 590 1000
    DN600 800 840 725 770 682 720 20-31 20-37 30 36 5 590 1190

    Product Display
