BS5163 resilient seated gate valve

  • Commodity name: BS5163 Soft seal gate valve
  • Commodity ID: 1048150108391956480
Dark rod soft seal elastic gate valve is suitable for liquid and gas medium pipelines and equipment, as a cut-off and regulating medium role.
  • Product Description
  • BS5163 gate valve product introduction

    Dark rod soft seal elastic gate valve is suitable for liquid and gas medium pipelines and equipment, as a cut-off and regulating medium role.

    The elastic soft seal gate valve uses the motion direction of the elastic gate to be perpendicular to the direction of the fluid, so the soft seal gate can only be fully opened and fully closed, and can not be used as regulation and throttling. The soft seal gate valve uses the overall coating of the gate plate to produce deformation compensation to achieve good sealing effect, and overcomes the general poor seal, water leakage and rust phenomenon of the gate valve. The gate valve has the characteristics of quick installation, easy maintenance, long service life and not easy to produce water hammer. The bottom of the flexible seal gate valve adopts the same flat bottom design as the water pipe, which is not easy to cause debris deposition, so that the fluid is unimpeded.

    The hand wheel is closed clockwise and open anticlockwise. No leverage is allowed.

    BS5163 soft seal gate valve performance characteristics

    1. It is not easy to break. In the past, the traditional cast iron soft seal gate valve is often broken due to external object hit, collision or overlap. As the soft seal gate valve to use ductile iron, this situation has been greatly reduced.

    2, corrosion resistance, soft seal gate valve body using powder epoxy resin coating, can prevent corrosion and rust valve body, and can be used for sewage system.

    3, the whole package of rubber, soft seal gate valve plate using high-quality rubber for the whole inside, outsourcing rubber, domestic first-class rubber vulcanization technology makes the vulcanized valve plate can ensure the precise geometric size, and rubber and ductile iron gate connection firm, not easy to fall off and elastic memory is good.

    4. Flat-bottom valve seat, traditional gate valve is often deposited in the bottom groove of the valve after water washing tube because of external objects such as stones, wood blocks, cement, paper scraps, debris and so on. Easy to cause can not close close and form water leakage phenomenon, soft seal gate valve with the same flat bottom design and water pipe, not easy to cause debris deposition, so that fluid unobstructed.

    5, three "O" type sealing ring, because the stem uses three "O" type sealing ring design. It can reduce the friction resistance of the switch, greatly reduce the leakage phenomenon and can replace the sealing ring without stopping the water construction.

    6, help to drink, because the valve body is coated with non-toxic epoxy resin inside, the internal and external surfaces of the gate valve are completely covered with rubber without rust water or corrosion phenomenon, available for drinking.

    7, casting valve body, the valve body adopts precision casting, precise geometric size makes the valve body without any finishing inside to ensure the tightness of the valve.

    8, light weight, the body is made of ductile ink casting, weight than the traditional gate valve weight reduction of about 20 percent to 30 percent, convenient maintenance.

    Three BS5163 soft seal gate valve use characteristics

    1. Small flow resistance. The medium channel inside the valve body is straight through, the medium flows in a straight line, and the flow resistance is small.

    2, less effort when opening and closing. Is compared with the globe valve, because whether it is open or closed, the direction of the ram movement is perpendicular to the direction of the medium flow.

    3, high height, long opening and closing time. The opening and closing stroke of ram is large, and the fall is carried out by screw.

    4, water hammer phenomenon is not easy to produce. The reason is the long shutdown time.

    5, the medium can flow to either side of any direction, easy to install. The gate valve channel is symmetrical on both sides.

    6, the structure length (the distance between the two connecting end faces of the shell) is small.

    7, the shape is simple, the structure is short, the manufacturing process is good, the application range is wide.

    Four-part material

    Part name material
    Valve cover Nodular cast iron and brass
    Valve body Nodular cast iron
    Ram Nodular cast iron +EPDM
    Valve stem Stainless steel
    Stem nut Brass
    Packing EPDM
    Hexagon socket nut Carbon steel
    Gasket EPDM



    Five main technical parameters

    Nominal pressure: 1.0-1.6MPa

    ◆ Nominal Scriptures: 40-400mm

    ◆ Operating temperature: 0 ~ 80℃

    ◆ Flange standard: EN1092-2 PN10/PN16

    ◆ Test standard: EN1074-1 and 2 /EN12266

    ◆ Applicable medium: clean water, or material and chemical properties similar to water medium

    ◆ Driving mode: manual

    ◆ Comply with the standard: BS5163

    Nominal size DN40~DN400
    Applicable medium Clean water, or medium similar to water in physical and chemical properties (sewage, raw water, hot water, oil medium please specify)
    Operating temperature ℃ 0-70 (standard configuration) 0-100 (hot water configuration)
    Nominal pressure PN10 PN16
    Working pressure (MPa) ≤1.00 ≤1.60
    Strength test (MPa) 1.5 2.4
    Seal test (MPa) 1.1 1.76

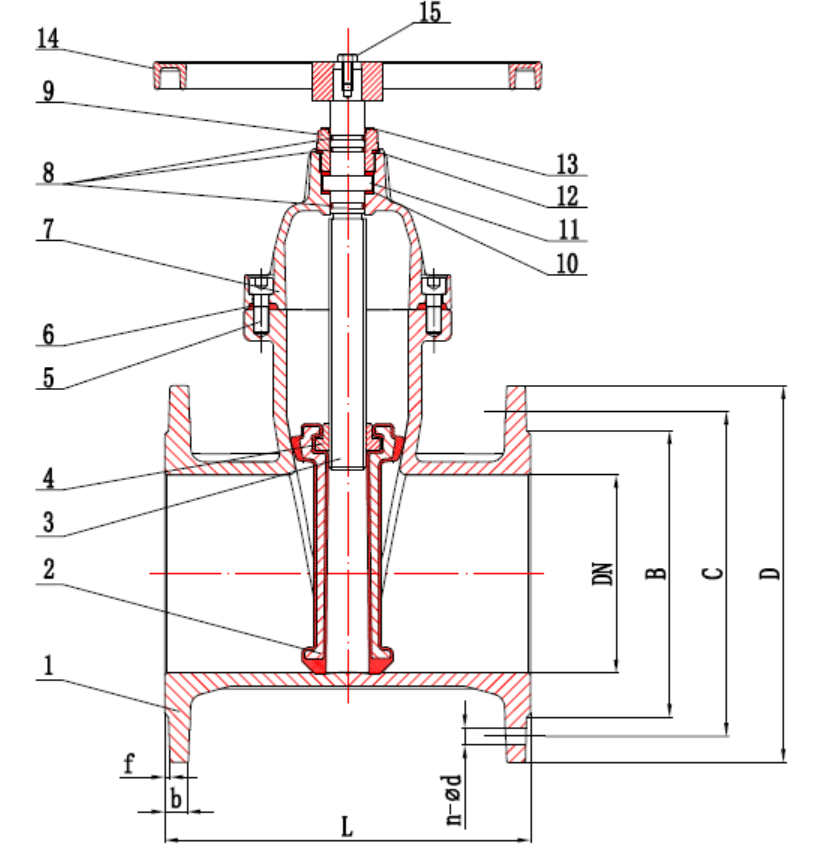

    Six. Structure Diagram:





    Size

    L

    D

    C

    B

    n-d

    b

    f

    H

    DN50

    178

    165

    125

    99

    4-19

    19

    3

    280

    DN65

    190

    185

    145

    119

    4-19

    19

    3

    305

    DN80

    203

    200

    160

    133

    4-19

    8-19

    19

    3

    350

    DN100

    229

    220

    180

    154

    8-19

    19

    3

    390

    DN125

    254

    250

    210

    184

    8-19

    19

    3

    470

    DN150

    267

    285

    240

    210

    8-23

    19

    3

    525

    DN200

    292

    340

    295

    265

    8-23

    12-23

    20

    3

    630

    DN250

    330

    405

    350

    355

    319

    12-23

    12-28

    22

    3

    780

    DN300

    356

    460

    400

    410

    370

    12-23

    12-28

    24.5

    4

    870

    DN400

    406

    580

    515

    525

    480

    16-28

    16-32

    28

    4

    1200
