DIN resilient seated gate Valve

  • Commodity name: Rising Stem Resilient Seted Gate Valve DIN3352 F4/F5 DN40-DN600
  • Commodity ID: YX011
Nominal Dia:DN40-DN600
Nominal Pressure:PN10&PN16
Standard:DIN3352 F4/F5
  • Product Description
  • Technical Parameter

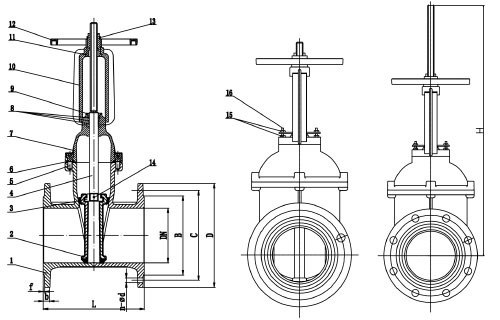

    Part & Materials

    No Part  Material
    1 Body Ductile Iron GGG50
    2 Wedge Ductile Iron GGG50+EPDM
    3 Wedge Nut Brass
    4 Stem SS420
    5 Bolts CS Gr 8.8
    6 Gasket EPDM
    7 Bonnet Ductile Iron GGG50
    8 O Ring EPDM
    9 Gland Ductile Iron GGG50
    10 Yoke Ductile Iron GGG50
    11 Stem Nut Brass
    12 Handwheel Ductile Iron GGG50
    13 Lock nut Carbon Steel
    14 Pin Carbon Steel
    15 Nuts Carbon Steel
    16 Bolts Carbon Steel



    Technical Data
    No Description Specification
    1 Nominal Dia DN40-DN600
    2 Nominal Pressure PN10&PN16
    3 Valve Design Standard DIN3352 F4/F5
    4 Face to Face Standard EN558&ISO5752 Series-14/15
    5 Flange Standard Conformity  DIN2533
    6 Testing Standard DIN3230
    7 Expoxy Coating Epoxy powder coating
    with minimum thickness of 250
    microns inside and outside.
    8 Testing Pressure
    Shell Test PN*1.5Times
    Sealing Test PN*1.1Times
    9 Working Temperature(Max)  120℃



    Dimensions(mm)
    DN L D C n-d b f W Full Open  H
    F4 F5 PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16 PN10 PN16
    DN40 140 240 150 110 84 4-19 18 3 160 350
    DN50 150 250 165 125 99 4-19 19 3 160 365
    DN65 170 270 185 145 119 4-19 19 3 160 400
    DN80 180 280 200 160 133 4-19 8-19 19 3 180 470
    DN100 190 300 220 180 154 8-19 19 3 200 525
    DN125 200 325 250 210 184 8-19 19 3 250 660
    DN150 210 350 285 240 210 8-23 19 3 250 725
    DN200 230 400 340 295 265 8-23 12-23 20 3 300 930
    DN250 250 450 405 350 355 319 12-23 12-28 22 3 330 1200
    DN300 270 500 460 400 410 370 12-23 12-28 24.5 4 380 1310
    DN350 290 550 520 460 470 429 16-23 16-28 24.5 26.5 4 490 1655
    DN400 310 600 565 580 515 525 480 16-28 16-31 24.5 28 4 490 1785
    DN450 280 650 640 565 585 530 548 20-28 20-31 25.5 30 4 490 1905
    DN500 350 700 670 715 620 650 582 609 20-28 20-34 26.5 31.5 4 590 2195
    DN600 390 800 780 840 725 770 682 720 20-31 20-37 30 36 5 590 2475

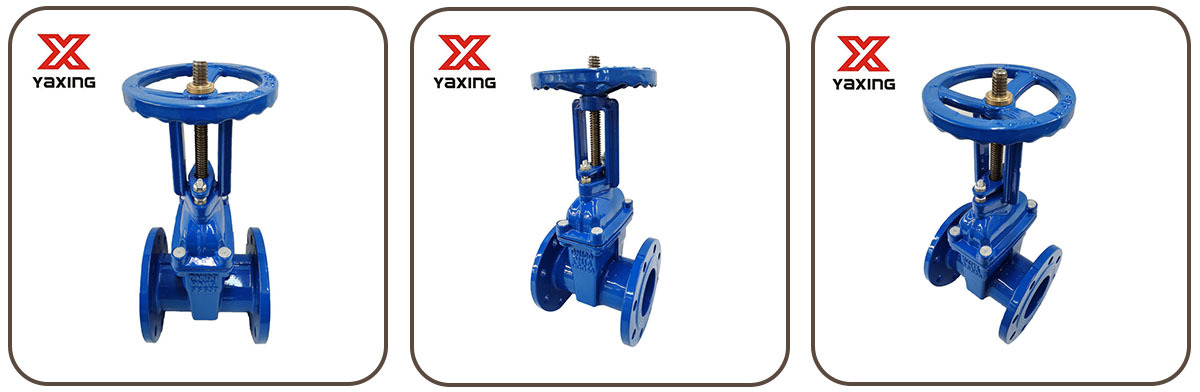

    Product Display
