  •  一 HC44X橡胶板止回阀简介

    HC44X止回阀又称逆止阀,其作用是防止管路中的介质倒流。启闭件靠介质流动和力量自行开启或关闭,以防止介质倒流的阀门叫止回阀。止回阀属于自动阀类,主要用于介质单向流动的管道上,只允许介质向一个方向流动,以防止发生事故。

    二 HC44X止回阀的性能特点

    HC44X橡胶板止回阀由阀体、阀盖、阀瓣和弹簧等组成,主要用于给排水系统、石油、化工等工业部门的管道出口处,防止介质逆流。由于本产品的封圈采用倾斜设计,关闭时间短,可减少水锤压力。阀瓣采用橡胶与钢板经高温压制而成,耐冲刷,密封性能好,产品结构简单、保养、维修、运输均很方便。

    三 零件材料

    零件名称

    材料

    阀体、阀盖

    球墨铸铁

    阀瓣

    球墨铸铁+EPDM

    填料

    EPDM

    内六角螺母

    不锈钢

    垫片

    EPDM

    四 主要技术参数

    ◆公称压力:1.0-1.6MPa

    ◆公称通经:50-400mm

    ◆工作温度:0~80℃

    ◆法兰标准:EN1092-2 /DIN3202 F6

    ◆试验标准:EN1074-1 and 2 /EN12266

    ◆适用介质:清水

    ◆驱动方式:自动

    ◆符合标准:DIN3202 F6/EN1074-3

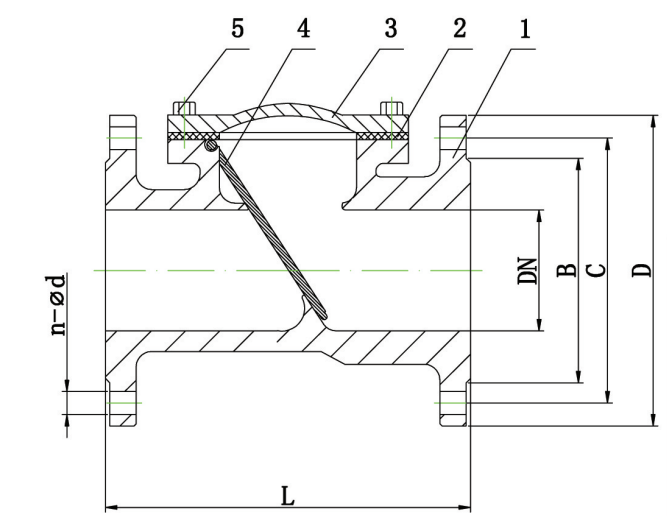

    五 结构图

    Size

    L

    D

    C

    B

    n-d

    b

    f

    DN50

    200

    165

    125

    99

    4-19

    20

    3

    DN65

    240

    185

    145

    118

    4-19

    20

    3

    DN80

    260

    200

    160

    133

    4-19

    8-19

    22

    3

    DN100

    300

    220

    180

    154

    8-19

    22

    3

    DN125

    350

    250

    210

    184

    8-19

    24

    3

    DN150

    400

    285

    240

    210

    8-23

    24

    3

    DN200

    500

    340

    295

    265

    8-23

    12-23

    26

    3

    DN250

    600

    405

    350

    355

    319

    12-23

    12-28

    27

    3

    DN300

    700

    460

    400

    410

    370

    12-23

    12-28

    28

    4
